50 Vertical

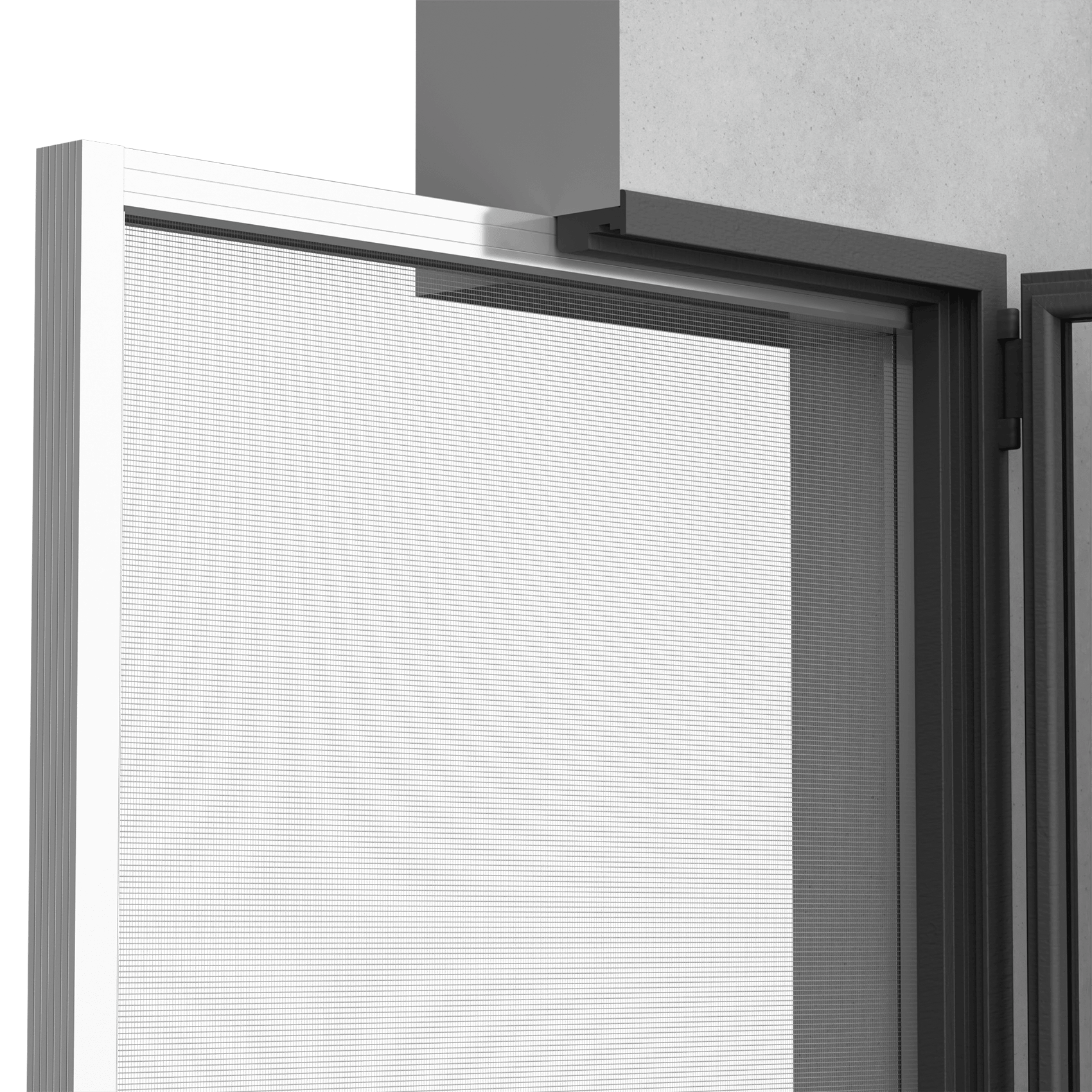

Fitted, vertical roller fly screen for windows. Find out more!

Unmistakable style.

Fitted.

Advanced fitted system.
Thanks to the special PRIMED fitted system, spacer + front panel, you will be able, with the simple replacement of the front panel, to change the fly screen model in the future without having to do masonry work to replace the previously inserted fitted guides.

With a 45 mm squared roller box and an ergonomic handle bar, it integrates perfectly into your environment thanks to the 50 mm spacer that permits discreet and refined fitted mounting.

As standard you will receive it with a grey fibreglass mesh electrowelded at the edges and with buttons.

The 50 mm spacer and front panel allow you to install your fly screen easily and accurately.

Solid and secure handle hooking thanks to the hidden handle caps at the end of the rail.

Fitted mounting.

The fitted installation of the 50 Vertical fly screen takes place in three main steps. First, fit and secure the 50 mm spacers in the wall recess. Next, fit and secure the fly screen’s roller box. Finally, complete the assembly by attaching the two front panels at the sides.

HORIZONTAL/WIDTH section

Ordering size= Clear dimension + 71 mm

(including 3 mm tolerance)

VERTICAL/HEIGHT section

Ordering size= Clear dimension + 45 mm

The horizontal and vertical sections show the ordering size of the fly screen compared to the clear dimension, providing a clear reference for precise, made-to-measure installation.

Optionals.

Clutched mechanism.

Available on request, the clutching mechanism slows down
the winding of the mesh when closing the fly screen.

Standard
Without the clutched mechanism, the fly screen rewinds quickly.

Optional
With the clutched mechanism, the rewinding of the fly screen is more controlled and slower.

Closing block.

Standard

Ergonomic, practical and safe handle bar for everyday use.

Optional

The optional closing block locks the handle bar, when the fly screen is closed, preventing accidental opening.

A touch of style.

Pull cord and end pull, silent when in contact with glass, available in 6 colours to match with your fly screen. Bronze, Brown, Ivory, Silver, White, Black.

Dimensions

50 mm spacer, box and handle dimensions (dimensions in mm)

50 mm spacer and box dimensions (dimensions in mm)

50 mm spacer and handle bar (dimensions in mm)

50 mm spacer and handle cap (dimensions in mm)

HORIZONTAL/WIDTH section with clear dimension and ordering size examples (dimensions in mm) Ordering size = Clear dimension + 71 mm (including 3 mm tolerance)

VERTICAL/HEIGHT section with clear dimension and ordering size examples (dimensions in mm) Ordering size = Clear dimension + 45 mm

Sheeting and measures

Towels	Cod.	Description	MIN	MAX
Towels	Cod.	Description	MIN	MAX	0	Grey Fibreglass Mesh	400x400	2000x2200
	RNE	Black Fibreglass Mesh	400x400	2000x2200
	BN	Striped Black-White Fibreglass Mesh	400x400	2000x2200
	SCC	Light Filtering Screen	400x400	1800x1400
	SCS	Dark Filtering Screen	400x400	1800x1400
	OSC	White Blackout Fabric	400x400	1800x1400
	OBM	White-Brown Blackout Fabric	400x400	1800x1400

Colours

901

9010 Glossy White

Accessories

Black
9FG

9010 Rough White

Accessories

Black
101

1013 Glossy Ivory

Accessories

Black
F1G

1013 Rough Ivory

Accessories

Black
801

8017 Glossy Brown

Accessories

Black
MMU

Rough Musk Brown

Accessories

Black
APR

Painted Silver

Accessories

Black
71G

7001 Rough Grey

Accessories

Black
NOP

9005 Matt Black

Accessories

Black
BVE

Painted Bronze

Accessories

Black
F35

Dark Bronze

Accessories

Black
91P

9010 Matt White

Accessories

Black
701

7016 Anthracite Grey

Accessories

Black
D3R

Rough Shot Cherry*

Accessories

Black

* while stocks last
DR1

Bright Renolit

Accessories

Black
DRS

Dark Renolit*

Accessories

Black

* while stocks last
D81

R811 Dark Renolit

Accessories

Black

Known colors

The colours listed below are available for this model while stocks last:

Marble Grey
Marble Brown

If the colour is no longer available in stock, the order will be processed within 15 working days from the date of order confirmation and processed with the corresponding colour price according to the specified finish.

If a colour not included in our colour chart is requested, the order will be processed within 25 working days from the date of order confirmation and processed with the corresponding surcharges.

Optional / Notes

OPTIONAL

Closing Block

Closing Block

This is a control system that locks the handle when the fly screen is closed, preventing accidental opening.

Order code: _ CB

Clutched Mechanism

Clutched mechanism

Inserting the clutched mechanism slows down the winding of the net when closing the fly screen. When the clutched mechanism is engaged, the minimum width measure must be increased by 200 mm.

Order code: _ FRI
